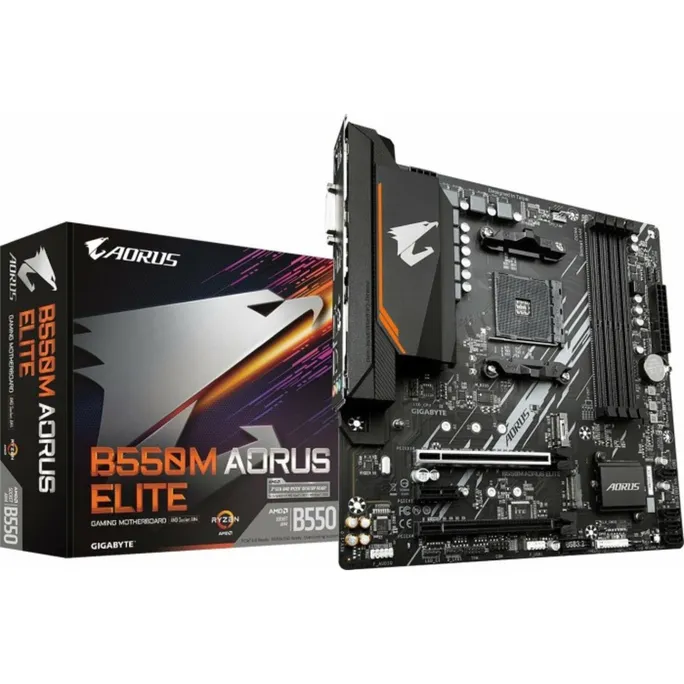

Gigabyte B550M AORUS Elite mATX Mainboard Sockel AM4 M.2/HDMI/DVI/USB

GIGABYTE
0
Art.-Nr.2305-8KK
Gigabyte B550M AORUS Elite mATX Mainboard Sockel AM4 M.2/HDMI/DVI/USB
Gigabyte B550M AORUS Elite mATX Mainboard Sockel AM4 M.2/HDMI/DVI/USB
Gigabyte B550M AORUS Elite mATX Mainboard Sockel AM4 M.2/HDMI/DVI/USB
Gigabyte B550M AORUS Elite mATX Mainboard Sockel AM4 M.2/HDMI/DVI/USB
Gigabyte B550M AORUS Elite mATX Mainboard Sockel AM4 M.2/HDMI/DVI/USB
Gigabyte B550M AORUS Elite mATX Mainboard Sockel AM4 M.2/HDMI/DVI/USB

Kurzbeschreibung

  • mATX Mainboard mit Sockel AM4 für AMD Ryzen (3. Generation)
  • AMD B550 Chipsatz, keine Grafik
  • 128 GB max. RAM DDR4-2133, 2400, 2666, 2933 bis 5200(OC) MHz
  • USB3.2 (Gen2 Typ A), M.2, HDMI, DVI
  • RGB Fusion 2.0, 12+2 Phases Digital VRM, Q-Flash Plus Update BIOS
Versand
Store
Online
Sofort verfügbar
Store
€ 87,90
inkl. MwSt.

Unsere top Geräteschutz-Angebote:


Beschreibung

AMD B550 Gaming Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 4.0/3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design

Features:

  • Supports 3rd Gen AMD Ryzen™ Processors

  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs

  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

  • Ultra Durable™ PCIe 4.0 Ready x16 Slot

  • Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connector

  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

  • HDMI, DVI-D, D-sub Ports for Multiple Display

  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips

  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

  • Anti-Sulfur Resistors Design

Bereit für AMD Ryzen™ Prozessoren der 3. Generation und mehr

Das B550 Chipset bringt PCIe® 4.0-Kompatibilität für NVMe-Speicher und -Grafik auf Mainstream-Motherboards. So können Sie sicher sein, dass Ihr System nicht frühzeitig obsolet wird.

Alle Motherboards mit AMD 500 Serie Chipset unterstützen die aktuellen, fortschrittlichen Ryzen Prozessoren der 3. Generation, die auf der den „Zen 2”-Architektur basieren. Doch das ist noch nicht alles. Dank der geplanten Unterstützung für künftige Ryzen Prozessoren auf Basis der „Zen 3”-Architektur1 bleibt Ihr System auch bereit für künftige Upgrades mit neuester Technologie.

Datenblatt

Artikelnummer 2305-8KK

Herstellernummer B550M AORUS ELITE

  • Formfaktor/CPU
    micro ATX Mainboard mit Sockel AMD AM4 Ryzen™ 5te/3te Generation/Ryzen mit Radeon Vega Grafik künftiger Generationen (nicht 3200G/3400G)
  • Chipsatz
    AMD B550
  • Arbeitsspeicher
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory3rd Gen AMD Ryzen™ Processors:Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modulesNew Generation AMD Ryzen™ with Radeon™ Graphics processors:Dual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
  • Graphik
    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Support for up to 3 displays at the same timeMaximum shared memory of 16 GB
  • Steckplätze
    1 x PCI Express x16 slot, integrated in the CPU:3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset:Supporting PCIe 3.0 x1 mode
  • Anschlüsse
    Interne Anschlüsse:1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus buttonExterne Anschlüsse:1 x PS/2 keyboard/mouse port1 x DVI-D port1 x HDMI port4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jack
  • Netzwerk/ Kommunikation
    Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Sound
    Realtek® ALC887 codecHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • Besonderheiten
    Support for APP Center, Support for Q-Flash Plus, Support for Q-Flash, Support for Xpress Install
  • Lieferumfang
    Benutzerhandbuch, Treiber-CD, Slotblende, SATA-Anschlusskabel,
