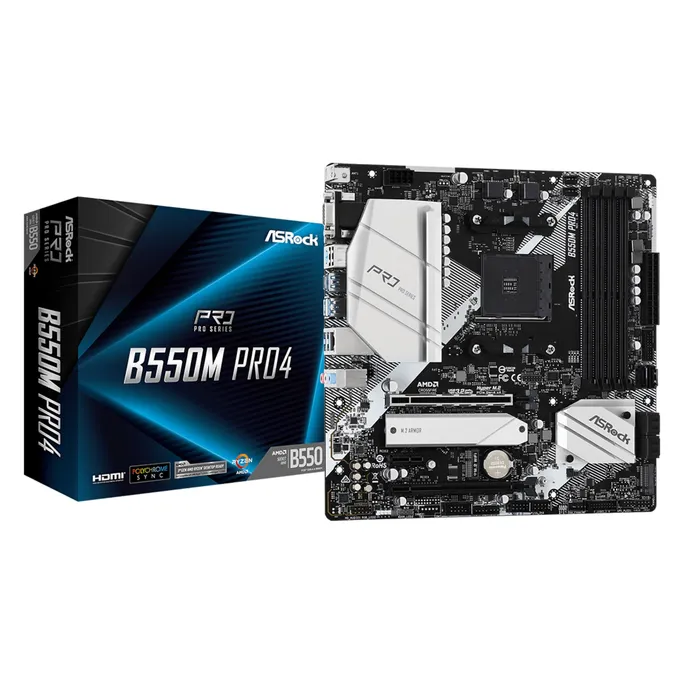

ASRock B550M Pro4 mATX Mainboard Sockel AM4 M.2/HDMI/DP/VGA/USB3.2(Gen2)

mATX Mainboard mit Sockel AMD AM4 für AMD Ryzen 2000/3000 Prozessoren

AMD B550

Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- Max. capacity of system memory: 128GB**

- Supports Extreme Memory Profile (XMP) memory modules

- 15μ Gold Contact in DIMM Slots*

Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

- DirectX 12, Pixel Shader 5.0

- Shared memory default 2GB. Max Shared memory supports up to 16GB.**

- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4

- Supports Triple Monitor

- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

- Supports HDR (High Dynamic Range) with HDMI 2.1

- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports

- Supports Microsoft® PlayReady

AMD Ryzen series CPUs (Matisse)

- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*

AMD Ryzen series APUs

- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*

- 1 x PCI Express 3.0 x1 Slot

- Supports AMD Quad CrossFireX™ and CrossFireX™

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Interne Anschlüsse:

1 x COM Port Header

1 x SPI TPM Header

1 x Power LED and Speaker Header

2 x RGB LED Headers*

2 x Addressable LED Headers**

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)

Externe Anschlüsse:

Antenna Bracket

1 x PS/2 Mouse/Keyboard Port

1 x D-Sub Port

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)

2 x USB 2.0 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Realtek RTL8111H

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- PCB Isolate Shielding

- Individual PCB Layers for R/L Audio Channel

- Nahimic Audio

Microsoft® Windows® 10 64-bit

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors

8 Power Phase Design, Digi Power

Supports DDR4 4733+ (OC)

1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi

Graphics Output Options: HDMI, DisplayPort, D-Sub

AMD CrossFireX™

7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio

6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)

2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)

Realtek Gigabit LAN

Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables

- 2 x Screws for M.2 Sockets

3 Jahre Herstellergarantie
