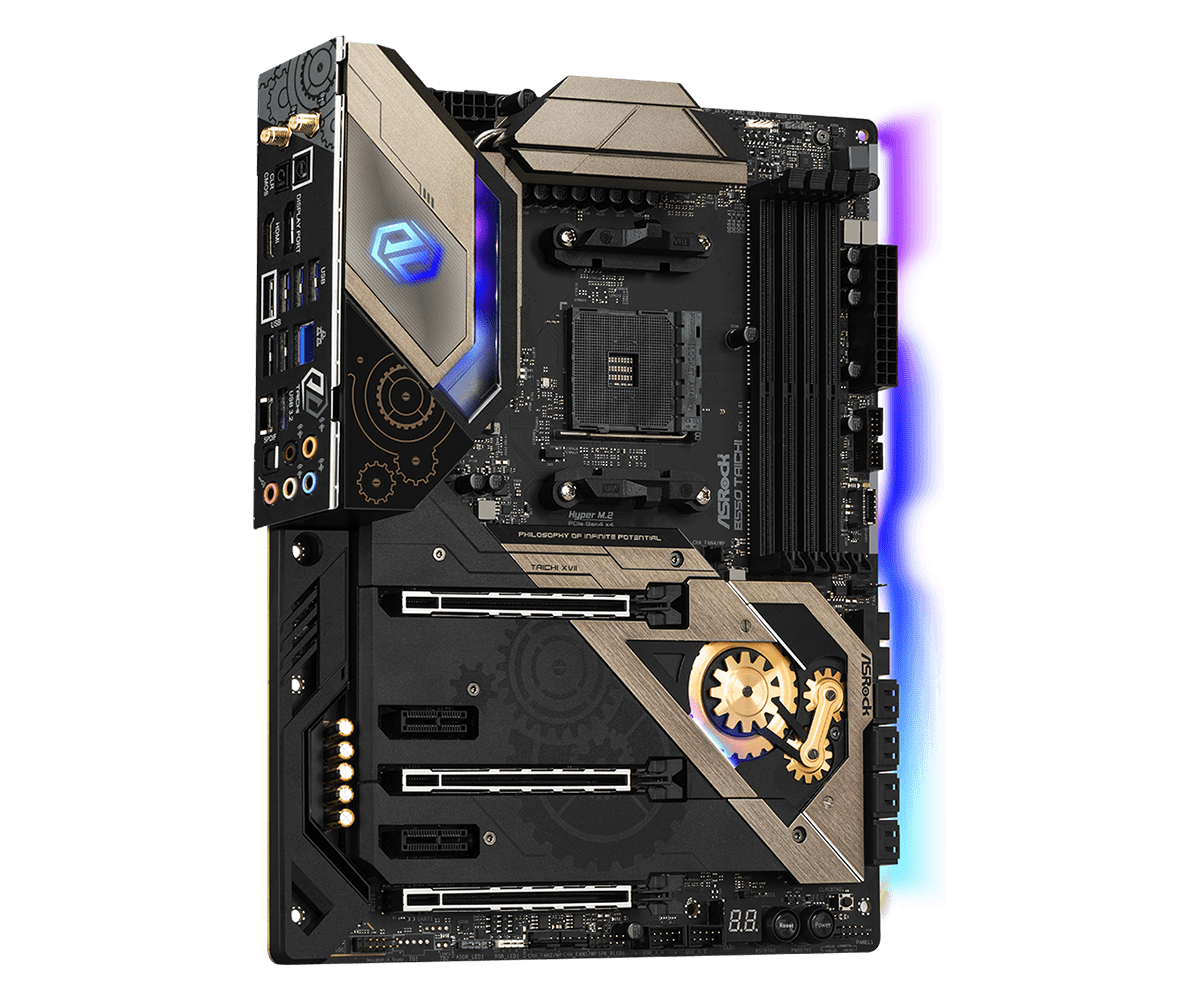

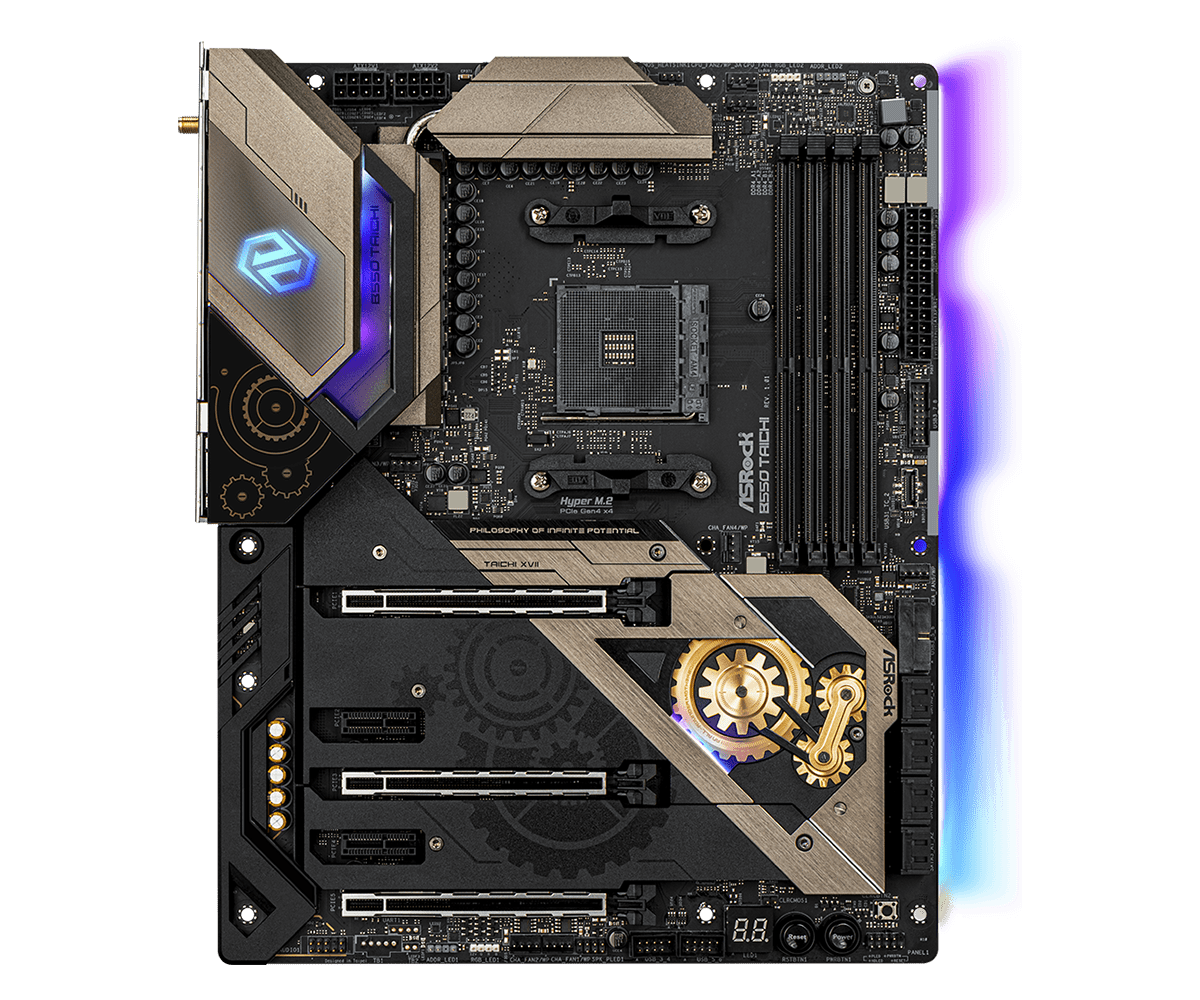

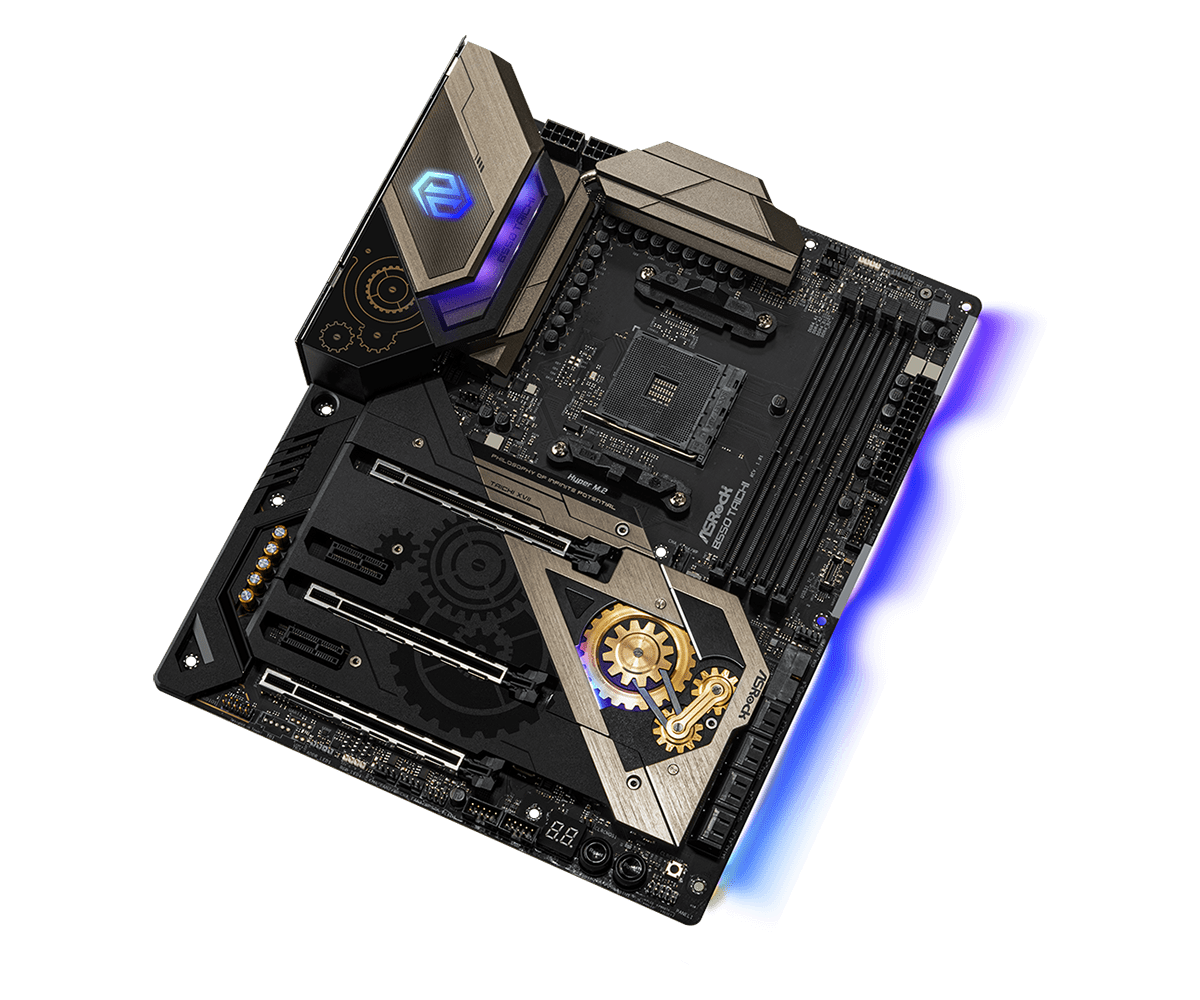

ASRock B550 Taichi ATX Mainboard Sockel AM4 M.2/HDMI/DP/USB3.2 WIFI/BT

ATX Mainboard mit Sockel AMD AM4 für Ryzen Series CPUs (3. Gen) und zukünftige AMD Ryzen Prozessoren

AMD B550

Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

- Max. capacity of system memory: 128GB*

- Supports Extreme Memory Profile (XMP) memory modules

- 15μ Gold Contact in DIMM Slots

Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

- DirectX 12, Pixel Shader 5.0

- Shared memory default 2GB. Max Shared memory supports up to 16GB.**

- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers

- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

- Supports DisplayPort 1.4 Input with max. resolution up to 5K (5120x2880)@120Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

- Supports HDR (High Dynamic Range) with HDMI 2.1

- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports

- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports

- Supports Microsoft® PlayReady

AMD Ryzen series CPUs (Matisse)

- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE5))*

AMD Ryzen series APUs

- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE5: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE5))

- 2 x PCI Express 3.0 x1 Slots

- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™

- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)

- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Interne Anschlüsse:

1 x Power LED and Speaker Header

2 x RGB LED Headers*

2 x Addressable LED Headers**

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****

1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector (15μ Gold Audio Connector)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)

1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)

1 x Dr. Debug with LED

1 x Power Button with LED

1 x Reset Button with LED

1 x Clear CMOS Button

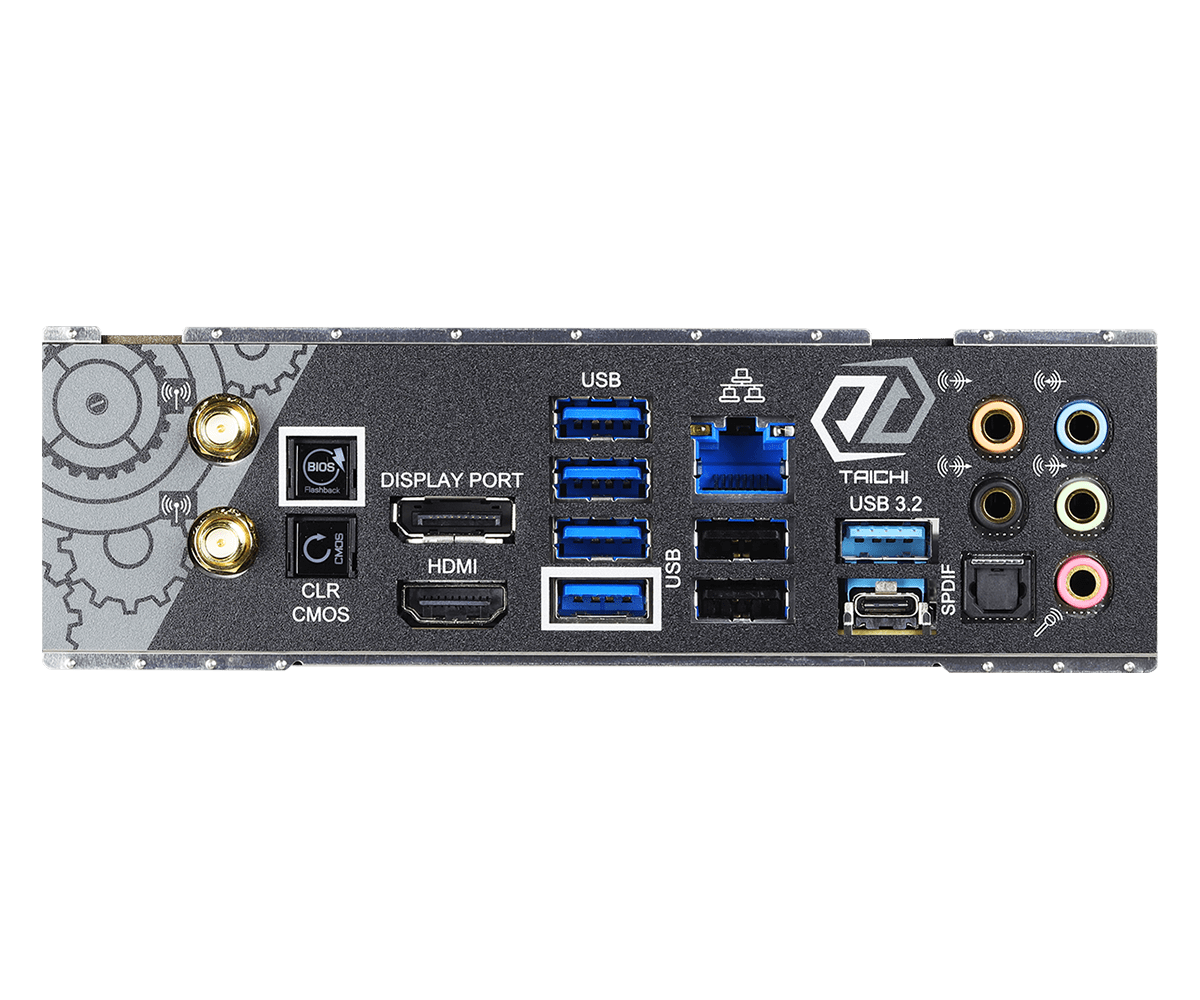

Externe Anschlüsse:

2 x Antenna Ports

1 x HDMI Port

1 x DisplayPort 1.4

1 x Optical SPDIF Out Port

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

2 x USB 2.0 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

1 x Clear CMOS Button

1 x BIOS Flashback Button

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- Dragon RTL8125BG

- Supports Dragon 2.5G LAN Software

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and Streaming Modes

- User Customized Priority Control

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

- Premium Blu-ray Audio support

- Supports Surge Protection

- 120dB SNR DAC with Differential Amplifier

- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)

- Pure Power-In

- Direct Drive Technology

- PCB Isolate Shielding

- Impedance Sensing on Rear Out port

- Individual PCB Layers for R/L Audio Channel

- Gold Audio Jacks

- 15μ Gold Audio Connector

- Nahimic Audio

Microsoft® Windows® 10 64-bit

Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors

16 Power Phase Design, Digi Power, Dr. MOS

Supports DDR4 5200+ (OC)

3 PCIe 4.0/3.0x16, 2 PCIe 3.0 x1

Graphics Output Options: HDMI, DisplayPort

AMD 3-Way CrossFireX™

7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio

8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)

Intel® 2.5G LAN, Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.1

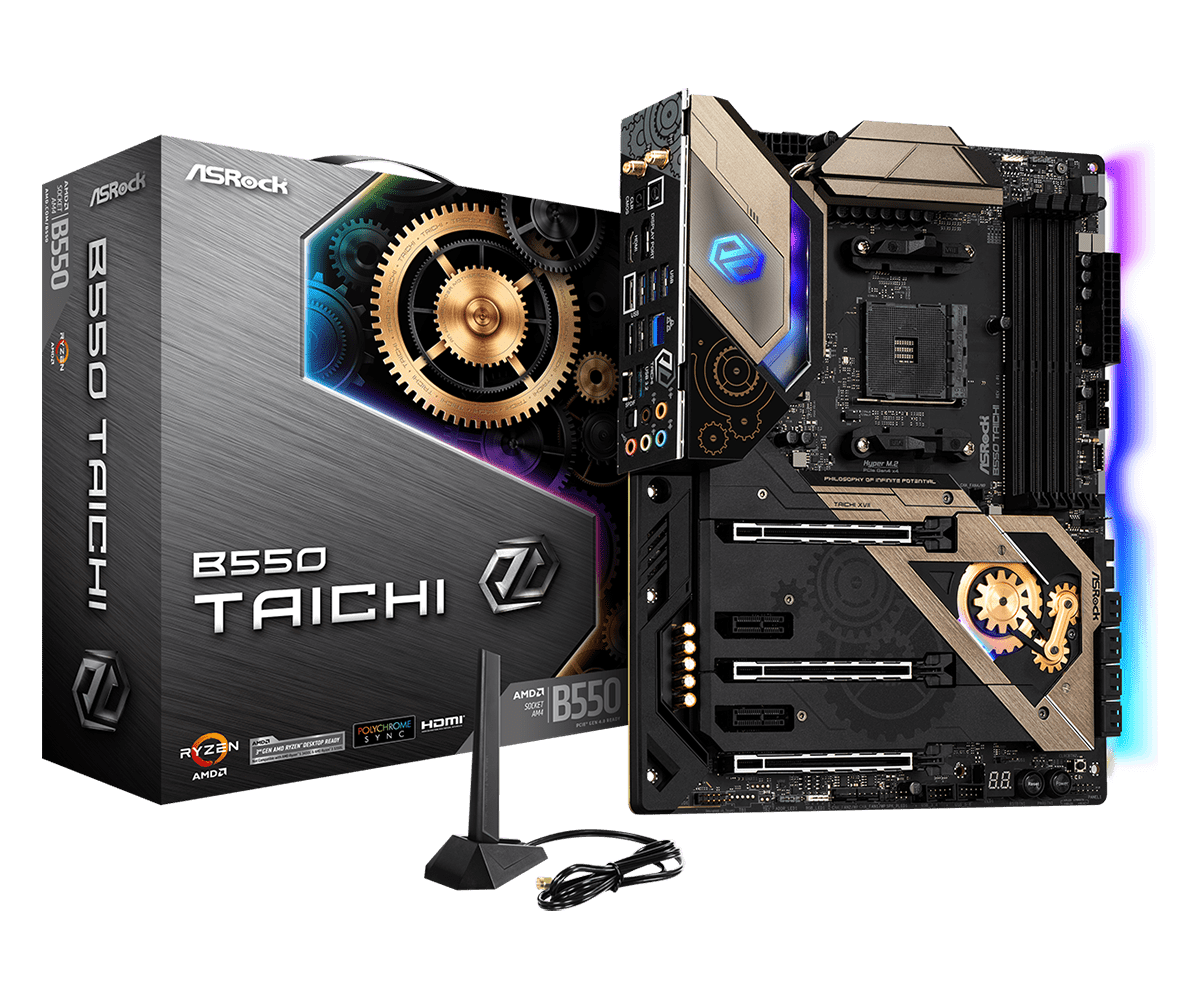

Quick Installation Guide, Support CD

- 4 x SATA Data Cables

- 1 x ASRock WiFi 2.4/5 GHz Antenna

- 1 x ASRock Screwdriver

- 2 x Screws for M.2 Sockets

- 2 x Standoffs for M.2 Sockets
